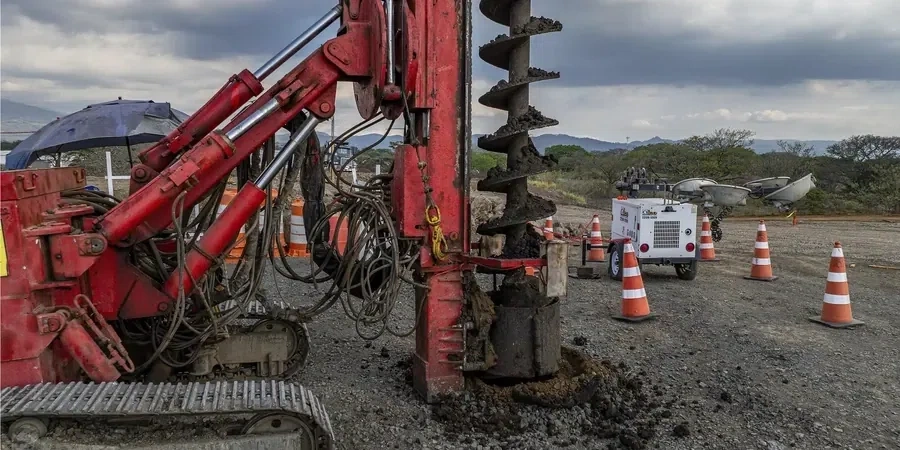

A low-rise commercial project on Dewdney Trunk Road started showing differential settlement within six months of construction, a scenario that repeats itself across Maple Ridge when soft alluvial clays and loose silts are left untreated. The Fraser River floodplain and the adjacent Pitt Meadows basin create subsurface conditions where undrained shear strengths can dip below 15 kPa, making conventional shallow foundations unreliable without prior Improvement. Our team approaches these sites by combining vibro-replacement stone column design with a thorough review of CPT test logs and existing borehole data, ensuring that each column penetrates through the compressible layer and into competent bearing strata. This integration of In-Situ and empirical design methods has become standard practice for projects ranging from warehouse expansions to municipal pump stations in the area.
In Maple Ridge, stone column performance hinges on penetrating the full thickness of compressible alluvium; anything less leaves the system vulnerable to long-term creep settlement.
Scope of work
Area-specific notes
Maple Ridge sits roughly 50 kilometres east of Vancouver in a seismic zone where the NBCC 2020 assigns a short-period spectral acceleration value that demands explicit liquefaction assessment. Loose saturated sands and low-plasticity silts beneath the Albion flats and along the Fraser River corridor are susceptible to cyclic mobility during a design earthquake, and untreated ground can lose bearing capacity abruptly. Installing stone columns addresses both settlement and seismic risk simultaneously: the dense aggregate columns provide drainage paths that dissipate excess pore pressure within seconds, while the composite ground mass gains shear resistance through densification and reinforcement. Our designs incorporate post-treatment verification with single-column load tests and MASW surveys to confirm shear-wave velocity improvement, tying the results back to the site-specific seismic hazard parameters defined in the national building code.
Standards used
NBCC 2020 (Division B, Part 4 – Structural Design), ASTM D6913/D6913M-17 (Particle-Size Distribution of Soils), FHWA NHI-16-027 (Improvement Methods, Vol. I & II), CSA A23.3-19 (Design of Concrete Structures, for load-transfer platform), Priebe H.J. – Die Bautechnik 1995/1998 (Settlement estimation method)
Linked services
Feasibility and Settlement Analysis
We evaluate site stratigraphy, consolidation parameters, and structural loading to determine if vibro-replacement is viable. Deliverables include area replacement ratio calculations, Priebe-method settlement curves, and consolidation time estimates that account for radial drainage through the columns.
Detailed Stone Column Design Package
Full design documentation covering column grid geometry, diameter, depth criteria, backfill specification per ASTM D6913, load-transfer platform detailing, and quality control testing protocols aligned with FHWA NHI-16-027 guidelines.
Post-Installation Verification Testing
We specify and interpret single-column load tests, zone load tests, post-treatment CPT soundings, and shear-wave velocity profiling to confirm that design assumptions are met before structural works proceed.
Typical parameters
Q&A
What is the typical cost range for stone column design on a Maple Ridge commercial site?
For a standard commercial lot in Maple Ridge where treatment depths range between 10 and 18 metres, the design engineering package typically falls between CA$1,790 and CA$7,290 depending on the number of columns, the complexity of the loading, and the extent of verification testing required. Projects with irregular column grids or phased construction sequencing tend toward the upper end of that range.
How does the high water table in Maple Ridge affect stone column installation?
The shallow groundwater, often within 0.5 to 1.5 metres of the surface in low-lying areas near the Fraser River, actually benefits the wet top-feed vibro-replacement process by maintaining borehole stability during penetration. Our designs account for buoyant unit weights in settlement calculations and specify a working platform elevation that keeps the rig above the water table during construction.
Can stone columns eliminate liquefaction risk in the Albion flats area?
Properly designed and installed stone columns can significantly reduce liquefaction susceptibility by densifying the surrounding granular soil and providing high-permeability drainage columns that prevent pore-pressure buildup. Post-treatment verification with CPT and shear-wave velocity testing confirms whether the target improvement has been achieved relative to the NBCC 2020 seismic demand for the site coordinates.
What soil conditions make a site unsuitable for vibro-replacement stone columns?
Sites with thick organic deposits exceeding roughly 2 metres, very soft clays with undrained shear strength below 10 kPa that cannot provide lateral confinement to the column, or ground containing large boulders and buried obstructions may require alternative approaches such as rigid inclusions or deep foundations. We screen for these conditions early using CPT soundings and test pit observations before committing to a stone column design path.
