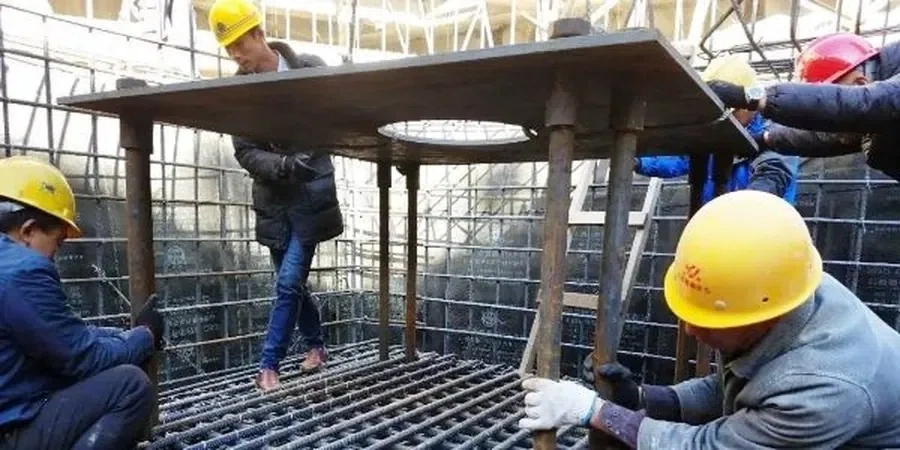

NBCC 2020 Part 4 sets the seismic hazard baseline for Maple Ridge. The city sits east of Vancouver on the Fraser River's north bank, where deep alluvial deposits and proximity to the Cascadia subduction zone demand more than conventional ductility-based design. Base isolation decouples the structure from ground motion. It reduces spectral acceleration demands at the fundamental period. The technique works. But it requires site-specific hazard deaggregation and soil-structure interaction modeling that accounts for the stiff glacial till and softer post-glacial sediments found across the District. A generic approach fails here. The seismic microzonation maps for Metro Vancouver show amplified long-period response in the Albion Flats. That data directly informs isolator displacement capacity and the moat wall clearance in our designs.
A properly tuned isolation system in Maple Ridge's Fraser Valley soils can reduce seismic base shear by 60 to 70 percent, keeping the superstructure elastic during the design earthquake.
Scope of work
Area-specific notes
The most common mistake involves treating base isolation as a plug-and-play product. Engineers specify isolators from a catalog without running Maple Ridge-specific ground motion records. That misses basin edge effects. The Fraser River delta edge generates surface waves that increase displacement demand at periods above 2 seconds. An undersized moat wall leads to pounding. Pounding transfers high-frequency acceleration into the superstructure. The isolation system fails catastrophically. Another error skips the uplift check. Friction pendulum bearings under light perimeter columns can unseat during vertical excitation. CSA A23.3 requires explicit verification. The lab runs nonlinear time-history analyses with 11 ground motion pairs selected and scaled per NBCC Commentary J. We check MCE_R displacement, residual drift, and isolator stability under upper-bound and lower-bound properties. Peer review is standard for Part 4 structures. We prepare the calculation package for the independent reviewer from day one.
Standards used
NBCC 2020 Part 4 – Seismic Design, CSA A23.3-19 – Design of Concrete Structures, ASCE/SEI 7-22 Chapter 17 – Seismic Isolation, ASTM D4015 – Modulus and Damping of Soils (Resonant Column)
Linked services
Site-Specific Hazard Analysis and Isolator Selection
We deaggregate the NBCC uniform hazard spectrum for Maple Ridge coordinates. Probabilistic and deterministic scenarios are examined. The controlling scenario typically involves a large Cascadia interface event. We select and scale ground motion suites per Commentary J guidelines. Isolator prototyping follows: lead-rubber bearing diameter, lead core size, and rubber shear modulus are sized to meet target period and damping. Friction pendulum radius and friction coefficient are calibrated to the site response spectrum. Property modification factors account for aging, temperature, and scragging.
Nonlinear Time-History Analysis and Peer Review Package
A full 3D model runs in ETABS or SAP2000 with nonlinear link elements representing each isolator. Analysis captures bidirectional coupling, P-delta effects, and accidental torsion per NBCC 4.1.8.12. We check service-level, design-level, and MCE_R-level earthquakes. Floor response spectra are generated for equipment anchorage. The output package includes displacement orbits, hysteretic energy plots, and base shear time histories. Documentation meets the CSA A23.3 requirements for special seismic systems. We coordinate directly with the independent peer reviewer to resolve comments before construction documents are issued.
Typical parameters
Q&A
What Maple Ridge sites benefit most from base isolation?
Sites on Class D soils in the Albion Flats and valley bottom see amplified long-period motion. Post-disaster buildings (hospitals, emergency operations centers) and high-importance structures under NBCC Table 4.1.2.1 gain the most functional recovery benefit. Isolation is also viable for heritage retrofit where added damping and strength cannot be introduced without altering the structure's character.
How does NBCC 2020 Part 4 govern base isolation design in Maple Ridge?
Part 4 adopts performance objectives tied to spectral acceleration at the site. Base isolation is treated as a special seismic system under Clause 4.1.8. The design must demonstrate that the isolated structure meets drift limits and that isolators remain stable at MCE_R displacement. Commentary J provides guidance on ground motion selection and scaling specific to Canadian seismicity.
What isolator types are specified for Fraser Valley soil conditions?
Lead-rubber bearings (LRB) and friction pendulum systems (FPS) are both used. LRBs provide inherent damping through the lead core. FPS offers a gravity-based re-centering mechanism. The choice depends on the column load range, displacement capacity, and the site's vertical stiffness requirements. We prototype both during the schematic design phase.
What is the typical design fee range for base isolation in Maple Ridge?
Design fees for a complete base isolation package — including hazard analysis, isolator selection, nonlinear time-history analysis, and peer review documentation — typically range from CA$6,530 to CA$11,170, depending on structural complexity and number of ground motion suites required.
