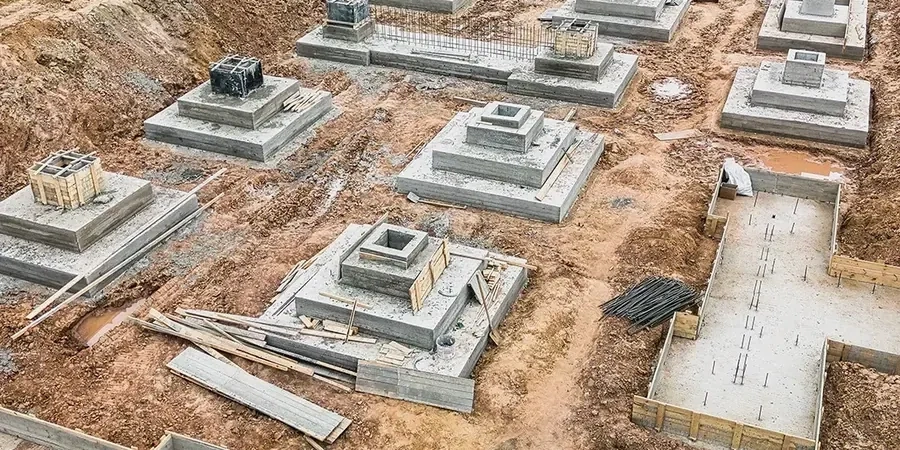

The north bank of the Fraser River in Maple Ridge doesn't offer much room for error when it comes to foundations. Much of the urban corridor, sitting at roughly 50 meters above sea level, is underlain by up to 30 meters of soft alluvial silts and clays deposited during the last glacial retreat. These soils have undrained shear strengths that can drop below 25 kPa, making conventional shallow footings a gamble we prefer not to take. Our team has worked extensively across the Albion and Hammond areas, where the water table often sits just 1.5 meters below grade, and the combination of high compressibility and seismic shaking potential from the Cascadia Subduction Zone demands a solid deep foundation strategy. Before committing to a structural load path, we often correlate the near-surface stratigraphy with CPT test data to map the soft clay lenses that dominate the floodplain profile.
In Maple Ridge, the difference between a successful pile design and a costly repair often comes down to correctly identifying the depth to the glacial till beneath the Fraser River silts.
Scope of work
Area-specific notes
With a population approaching 100,000 and rapid development pressure along the 224th Street corridor, Maple Ridge has seen a rise in projects pushing into marginal land adjacent to the Kanaka Creek and Fraser River floodplains. The biggest technical risk we encounter isn't just settlement—it's downdrag. When thick fills are placed to raise site grades above the flood construction level, the underlying soft clays consolidate, gripping the pile shaft and imposing negative skin friction. Without a properly designed slip layer or an increase in structural capacity, the pile can be dragged downward, cracking grade beams and transferring unanticipated loads to the superstructure. Liquefaction of loose sand lenses within the alluvial package represents a second critical hazard, particularly for bridge abutments and infrastructure projects where lateral spreading can shear pile heads. The NBCC 2020 seismic hazard values for this latitude demand a site-specific response analysis for any post-disaster or high-importance structure.
Standards used
NBCC 2020 (National Building Code of Canada, seismic provisions), CSA A23.3:19 (Design of Concrete Structures), ASTM D3966-22 (Standard Test Methods for Deep Foundation Elements Under Lateral Load), CFA (Canadian Foundations Manual, 4th Edition, 2006), ASTM D1586-18 (Standard Test Method for Standard Penetration Test)
Linked services
Geotechnical Site Investigation for Piles
We design and supervise SPT and CPTu exploration programs to delineate the depth to competent bearing strata, collect undisturbed samples for laboratory strength testing, and define the groundwater regime critical to installation methods.
Axial and Lateral Capacity Analysis
Using LPILE and APILE software, we compute the ultimate and allowable capacities for driven and cast-in-place piles, considering both end bearing on dense till and the shaft adhesion in overlying cohesive soils.
Downdrag and Settlement Assessment
We quantify negative skin friction loads from consolidating fills and regional subsidence, incorporating bitumen slip coatings or increased pile sections to protect the structural integrity of the foundation system.
Pile Driving Analysis (PDA) and Monitoring
During installation, our team performs high-strain dynamic testing to verify hammer energy transfer, confirm capacity, and adjust driving criteria in real time, reducing the risk of pile damage through dense cobble layers.
Typical parameters
Q&A
What is the typical cost range for pile foundation design in Maple Ridge?
For a standard residential or light commercial project, the engineering scope for pile foundation design—including site investigation planning, axial and lateral analysis, and construction specifications—typically ranges from CA$2,200 to CA$8,190. The final cost depends on the complexity of the soil profile, the number of piles, and whether supplementary testing like PDA monitoring is required.
Why are shallow foundations often unsuitable in the Maple Ridge flats?
Much of the flatlands near the Fraser River consist of soft, compressible silty clays that can settle excessively under load. When you add the high water table and potential for seismic amplification, shallow footings can experience differential movement that damages the structure, making deep pile support a more reliable engineering solution.
How do you prevent steel piles from corroding in the local soils?
We assess the soil chemistry, specifically the pH, resistivity, and sulfate content, during the investigation phase. In the fill materials near the river where corrosion potential is moderate to high, we typically specify a sacrificial steel thickness, use protective coatings, or, in severe cases, recommend concrete encasement to ensure the design life of the pile is met.
What pile type performs best in the glacial till found in Maple Ridge?
Driven steel H-piles are very effective for penetrating the dense, overconsolidated glacial till that underlies the soft sediments. They offer high capacity with relatively small displacement. When noise or vibration is a concern near existing homes, we often design drilled and cast-in-place concrete shafts with a temporary casing through the soft clay layer.
Does the Fraser River flooding potential affect pile design?
Absolutely. The floodplain designation means we must design for saturated soil conditions and potential scour. We set the pile cutoff elevation above the design flood level and consider the loss of lateral support from any scoured soil. The buoyant weight of the soil and the hydrodynamic forces during a major flood event are standard inputs in our load combination checks.
