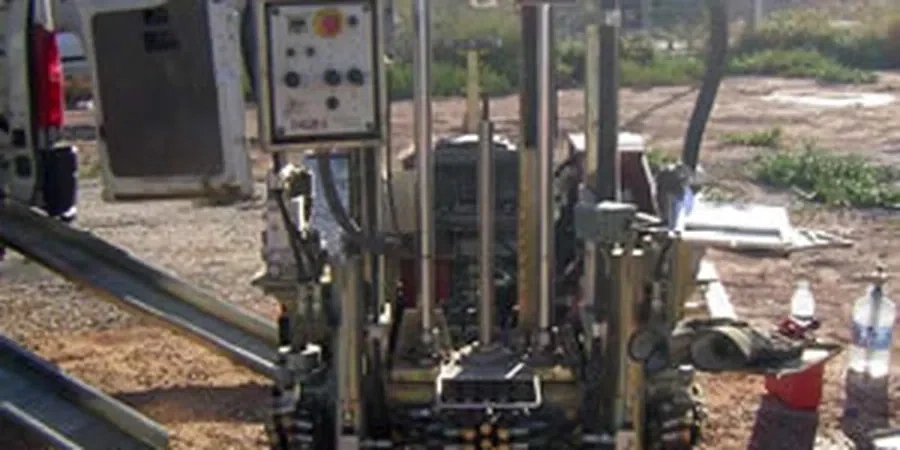

Maple Ridge grew from a riverfront farming community into a city of over 90,000, stretching from the Fraser River northward onto the upland benches. This geographic spread means one site might sit on soft alluvial silts while another, just a few blocks away, hits dense glacial till or bedrock at shallow depth. We’ve seen projects delayed because the subsurface model assumed uniformity where none exists. CPT testing cuts through that uncertainty by delivering a continuous, high-resolution log of soil behaviour—tip resistance, sleeve friction, and dynamic pore pressure—without the disturbance that comes with conventional SPT sampling. For the silty, interbedded soils common across the Fraser Valley, that near-continuous record often reveals thin drainage layers or sensitive clay seams that a standard borehole log would miss. When we combine CPT data with targeted SPT drilling to recover samples, or run grain-size analysis on the cuttings, the ground model tightens up significantly.
A single CPT sounding in Maple Ridge can replace three or four SPT boreholes when the goal is a continuous stratigraphic profile and reliable settlement estimate.
Scope of work
Area-specific notes
The Fraser River floodplain underlying downtown and Albion is a known liquefaction hazard during a major seismic event—Metro Vancouver sits in a high-seismicity zone with a 30% probability of a damaging earthquake in 50 years. Loose, saturated sands and low-plasticity silts at shallow depth can lose strength rapidly under cyclic loading. A CPT sounding provides the data density needed for a defensible liquefaction triggering analysis using the NCEER/Youd-Idriss or Boulanger-Idriss CPT-based methods. Without it, you’re extrapolating from sparse SPT data and hoping the thin sand layers don’t govern. We’ve worked on Maple Ridge sites where a single continuous CPT log revealed a 1.5-metre loose sand lens at 6 metres depth that conventional borehole sampling had completely missed. That lens controlled the liquefaction-induced settlement estimate and changed the foundation recommendation from shallow footings to Improvement. A liquefaction assessment built on CPT data is standard practice here for any structure taller than three storeys, and the City’s building department now routinely requests CPTu results for projects in the floodplain.
Standards used
ASTM D5778-20 (Standard Test Method for CPT and CPTu), CSA A23.3-19 (Concrete structures — references CPT for foundation design parameters), NBCC 2020 (National Building Code — seismic provisions, Site Class determination via CPT), NCEER/Youd-Idriss 2001 (CPT-based liquefaction triggering)
Linked services
Residential CPT Soundings
One to three soundings for single-family homes, townhouse blocks, and small apartment buildings. We provide soil behaviour type classification, undrained shear strength profiles for clays, and equivalent SPT N60 values for designers who work in that framework.
Commercial & Industrial CPT Programs
Multiple soundings on a grid pattern for warehouses, retail plazas, and light-industrial buildings. Includes pore-pressure dissipation testing at foundation level to estimate consolidation settlement timelines.
Liquefaction Screening CPT
Focused CPTu pushes with high-frequency data acquisition in the upper 20 metres. We deliver factor-of-safety profiles and post-liquefaction settlement estimates for compliance with NBCC 2020 seismic requirements.
Deep Foundation CPT Parameters
CPT-based pile capacity analysis using LCPC, ICP, or FHWA methods. Sleeve friction and tip resistance data feed directly into axial capacity calculations for driven and cast-in-place piles in Maple Ridge soils.
Typical parameters
Q&A
How much does a CPT test cost in Maple Ridge?
Budget between CA$260 and CA$350 per sounding for a standard push to 15–20 metres, assuming reasonable access. Deeper soundings, multiple dissipation tests, or sites requiring track-mounted equipment on rough terrain will push toward the upper end. We provide a firm quote after reviewing the site location and ground conditions.
Can a CPT replace soil borings entirely?
Not entirely. The CPT gives continuous soil behaviour data but does not recover physical samples. For projects needing Atterberg limits, moisture content, or direct shear tests, we pair CPT soundings with targeted test pits or SPT boreholes to collect the samples required by the geotechnical engineer of record.
How long does a CPT sounding take on site?
A single push to 20 metres typically takes 30 to 60 minutes, plus setup and breakdown. If we’re running pore-pressure dissipation tests at multiple depths, each pause can add 10 to 30 minutes depending on how quickly the excess pore pressure dissipates in the local silts and clays.
What depth can you reach before refusal on Maple Ridge glacial till?
In the Silver Valley and higher bench areas, dense glacial till often stops the cone between 8 and 15 metres. On the floodplain near the Fraser, we routinely reach 25–30 metres before encountering dense Pleistocene deposits. We track tip resistance in real time and stop when qc exceeds 50 MPa consistently to avoid damaging the cone or rods.
