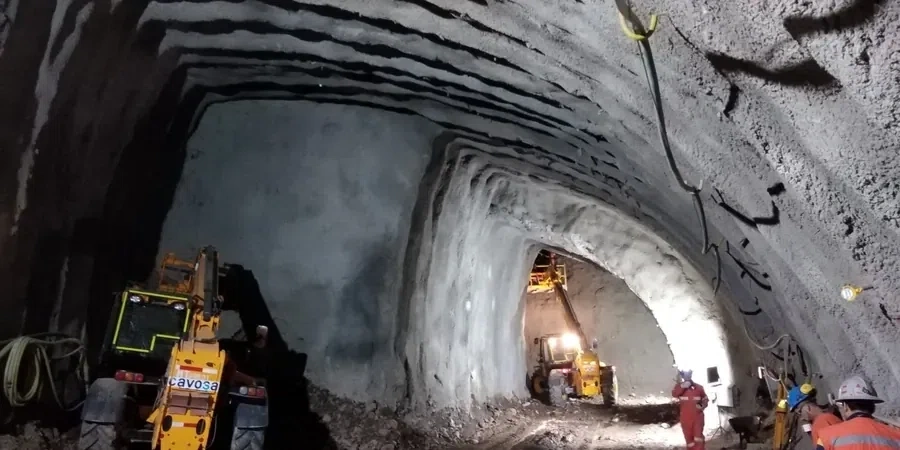

Tunneling through the Fraser River lowlands presents a distinct set of geotechnical challenges that demand a precise investigation strategy. Maple Ridge sits on a complex foundation of glacially overridden alluvial and marine sediments, where groundwater tables fluctuate seasonally and the underlying bedrock—part of the Coast Plutonic Complex—drops steeply across the district. For tunnel alignment design in these soft ground conditions, the National Building Code of Canada (NBCC 2020) requires a site-specific response spectrum and detailed stratigraphic profiling. Our laboratory executes ASTM D4767 consolidated-undrained triaxial tests to define effective stress strength envelopes, while field campaigns integrate CPT soundings to map the transition from soft silts to dense till without the sample disturbance that rotary drilling introduces. In the eastern sections toward Kanaka Creek, we often supplement the cone data with grain-size distribution analysis to correlate CPT sleeve friction with fines content, a relationship that directly feeds into the face pressure calculations for closed-face TBMs.
In Maple Ridge, the difference between a successful tunnel drive and a face collapse often comes down to knowing the preconsolidation stress of the Fort Langley silts.
Scope of work
Area-specific notes
A 1.8 km sewer tunnel alignment we reviewed near the Haney Bypass encountered a buried paleochannel filled with loose, saturated silty sand directly beneath the proposed invert. The original borehole log had terminated in dense till and missed the channel entirely—spacing between vertical holes was too wide. When the TBM entered this zone, the face lost pressure, and a sinkhole developed within four hours, reaching the asphalt of a collector road. In Maple Ridge, buried channels of the Fraser River’s ancestral course are a recurring hazard; they often contain wood debris and organics that further reduce the stand-up time. For tunnels in soft ground, the continuity of stratigraphic information is what prevents such failures. We address this by specifying CPT transects at 25 m centers along the alignment, with selective sonic drilling where the cone refuses, to capture these hidden low-density pockets before they become construction emergencies.
Watch how it works
Standards used
NBCC 2020 – Seismic hazard and geotechnical site classification, ASTM D4767 – Consolidated-Undrained Triaxial Compression Test on Cohesive Soils, CSA + ASTM D2435 – One-Dimensional Consolidation Properties of Soils, CSA A23.3 – Design of concrete structures (tunnel lining provisions), ASTM D5778 – Standard Test Method for CPT Sounding
Linked services
Tunnel Alignment Geotechnical Investigation
Cone penetration testing (CPT) and sonic drilling along the proposed alignment to define soil units, groundwater conditions, and the bedrock surface. Includes in-situ vane shear tests in soft clays, installation of vibrating wire piezometers for pore pressure monitoring, and Shelby tube sampling for laboratory strength and consolidation testing. Deliverables include a geotechnical baseline report (GBR) with interpreted stratigraphic cross-sections and design soil parameters for each tunnel reach.
Laboratory Testing Program for TBM Design
A full suite of advanced laboratory tests tailored to soft ground mechanized tunneling: CIU and CAU triaxial tests to define undrained strength profiles, one-dimensional consolidation to calculate settlement trough geometry, grain-size distribution and Atterberg limits for soil conditioning and face support slurry design, and sulfate/pH testing to specify durable concrete and grout mixes for the segmental lining.
Typical parameters
Q&A
What is the typical cost range for a geotechnical tunnel investigation in Maple Ridge?
For a soft ground tunnel alignment study in the Maple Ridge area, the investigation cost generally falls between CA$6,500 and CA$23,760, depending on the length of the alignment, the number of CPT soundings and boreholes required, and the complexity of the laboratory testing program. Shorter sewer or utility tunnels with a limited number of test points tend toward the lower end, while longer alignments requiring sonic drilling into bedrock, piezometer installations, and advanced triaxial testing will approach the upper range.
How does the Fort Langley Formation affect tunnel face stability?
The Fort Langley Formation in Maple Ridge consists of overconsolidated silts and clays with a preconsolidation stress that can be 80 to 250 kPa above the current effective overburden. This overconsolidation provides some short-term stand-up capability, but the material is heavily fissured and prone to rapid softening upon unloading. Tunnel face stability calculations must use post-peak undrained shear strengths, not intact peak values, and account for the negative pore pressures that develop at the face during advance.
What laboratory tests are essential for TBM slurry or EPB conditioning design?
For TBM conditioning in Maple Ridge’s mixed-face conditions, we run full grain-size distributions (CSA + ASTM D422/D6913), Atterberg limits (ASTM D4318), and slurry sedimentation tests. The fines content and plasticity index determine whether a slurry or earth-pressure-balance TBM is more suitable, and the sand-to-fines ratio guides the selection of foam or polymer additives to achieve the target permeability and workability at the cutterhead.
How do you identify buried paleochannels along a tunnel alignment?
Identifying paleochannels in the Maple Ridge area requires continuous stratigraphic profiling rather than widely spaced boreholes. We use CPT transects at 20 to 25 m intervals along the alignment; a sudden drop in tip resistance and increase in pore pressure ratio (Bq) signals loose, saturated channel fill. Where the cone meets refusal on wood debris or cobbles, we switch to sonic drilling to recover continuous core. This combined approach catches narrow paleochannels that individual boreholes would miss.
